Harmonic Gearhead® Servo Mount Gearboxes

Quick Connect® coupling enables our gearboxes to connect easily to any servo motor by using a single bolt clamping design. They are an ideal solution when using a servomotor. Harmonic Drive offers easy-to-connect gearheads with a range of gear ratios and torque capacities. Our Quick Connect® gearheads are available as planetary gearheads or harmonic gearheads.

Harmonic Planetary® (ratios 3:1 to 50:1)

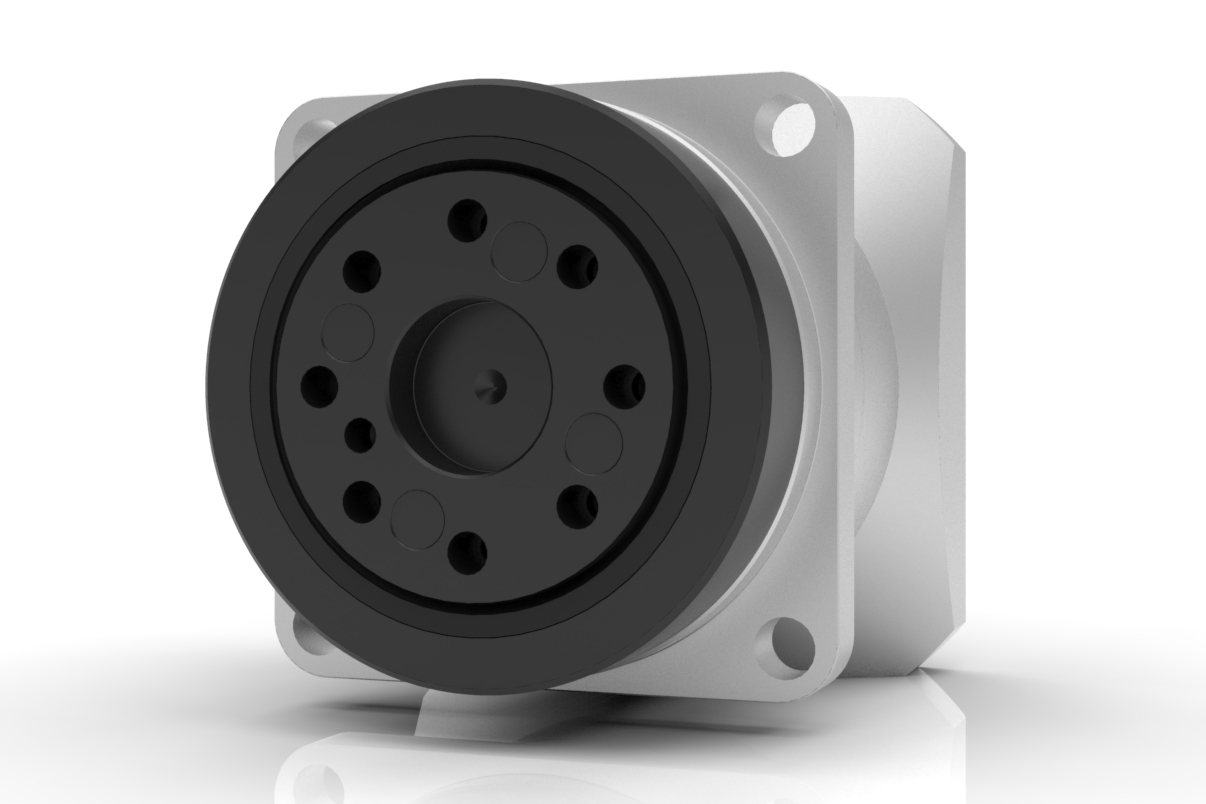

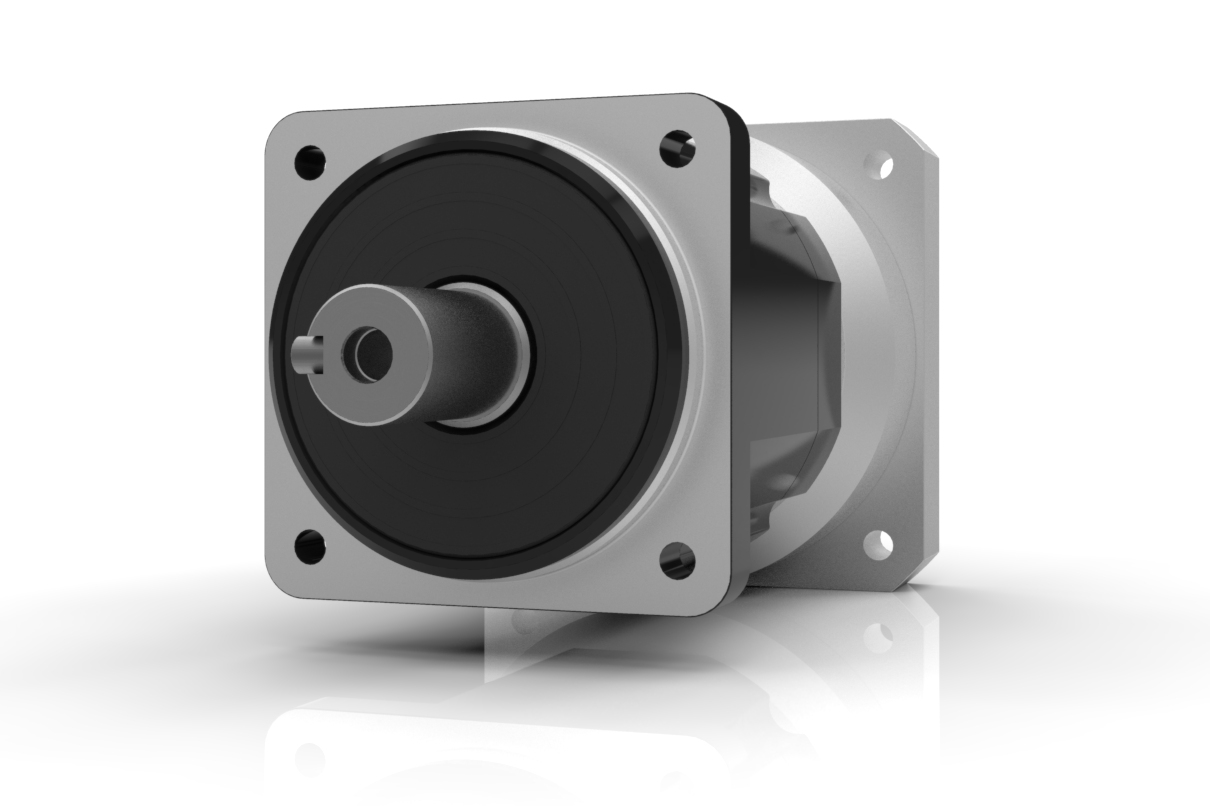

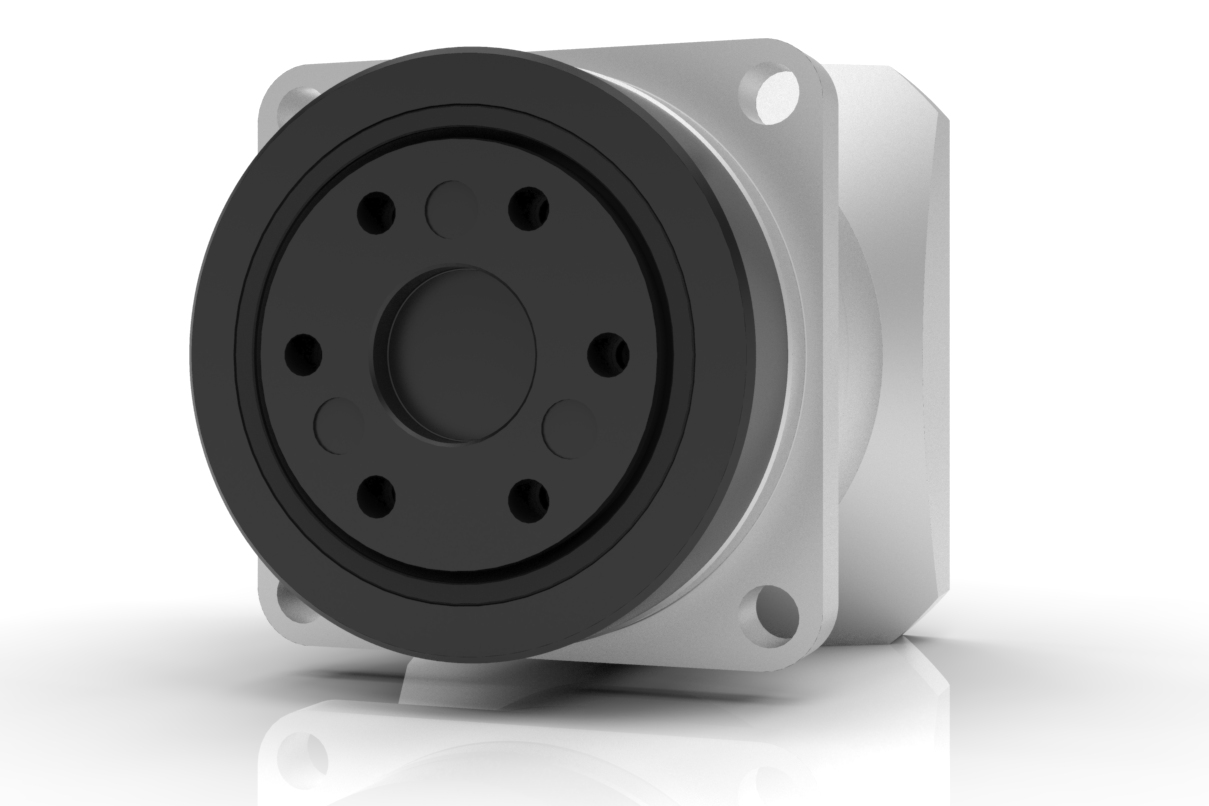

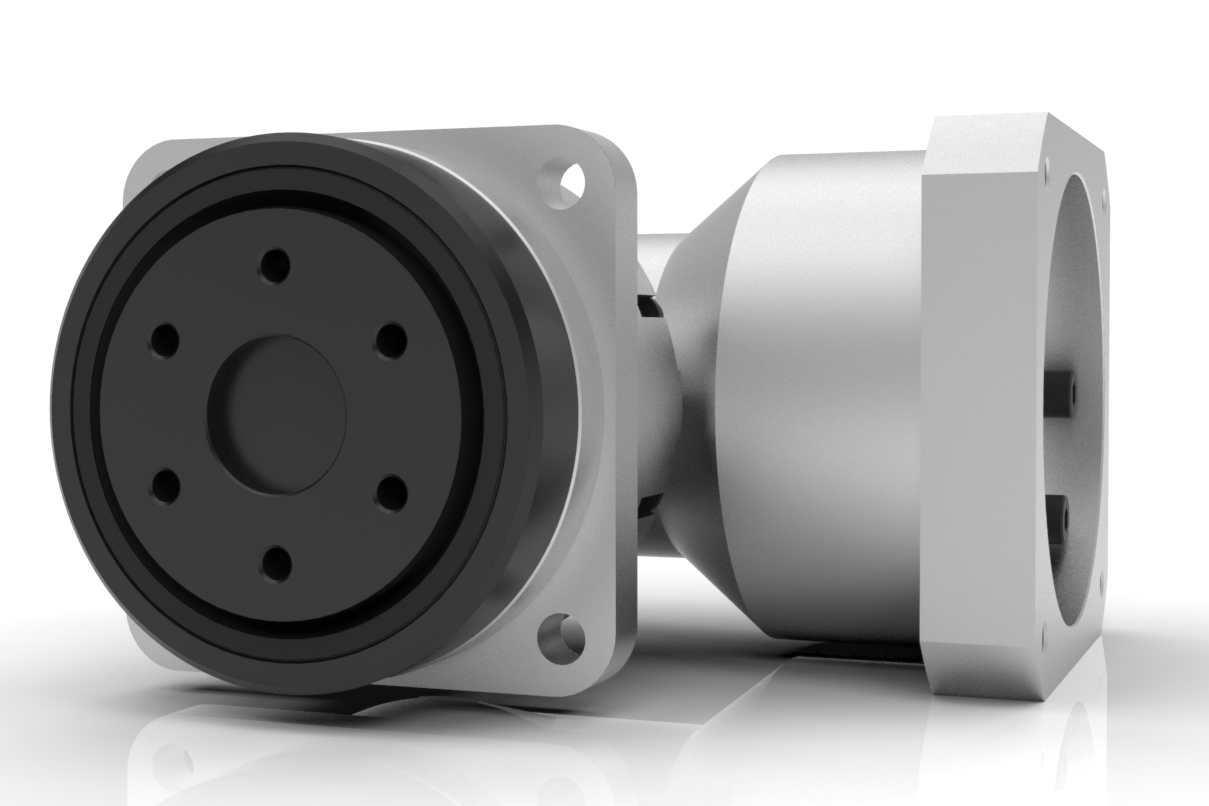

Harmonic Drive LLC offers a range of Harmonic Planetary® gearheads. HPN-L Face-Mount value series is our newest line of planetary gearboxes and offer affordable pricing with short lead times. Plus, they are a drop-in replacement for many popular planetary gearbox models. HPN-A Planetary gears are available in one-stage and two-stage speed ratios. Both HPN-L and HPN-A are available in a right angle configuration. HPG (standard torque), HPG (standard torque with helical gearing) and HPGP (high torque with helical gearing) gearheads offer precision and low backlash (standard: < 3-arc-min, optional: <1 arc-min), and HPG is available in 3 sizes as a right angle configuration.

Harmonic Drive® (ratios 50:1 to 160:1)

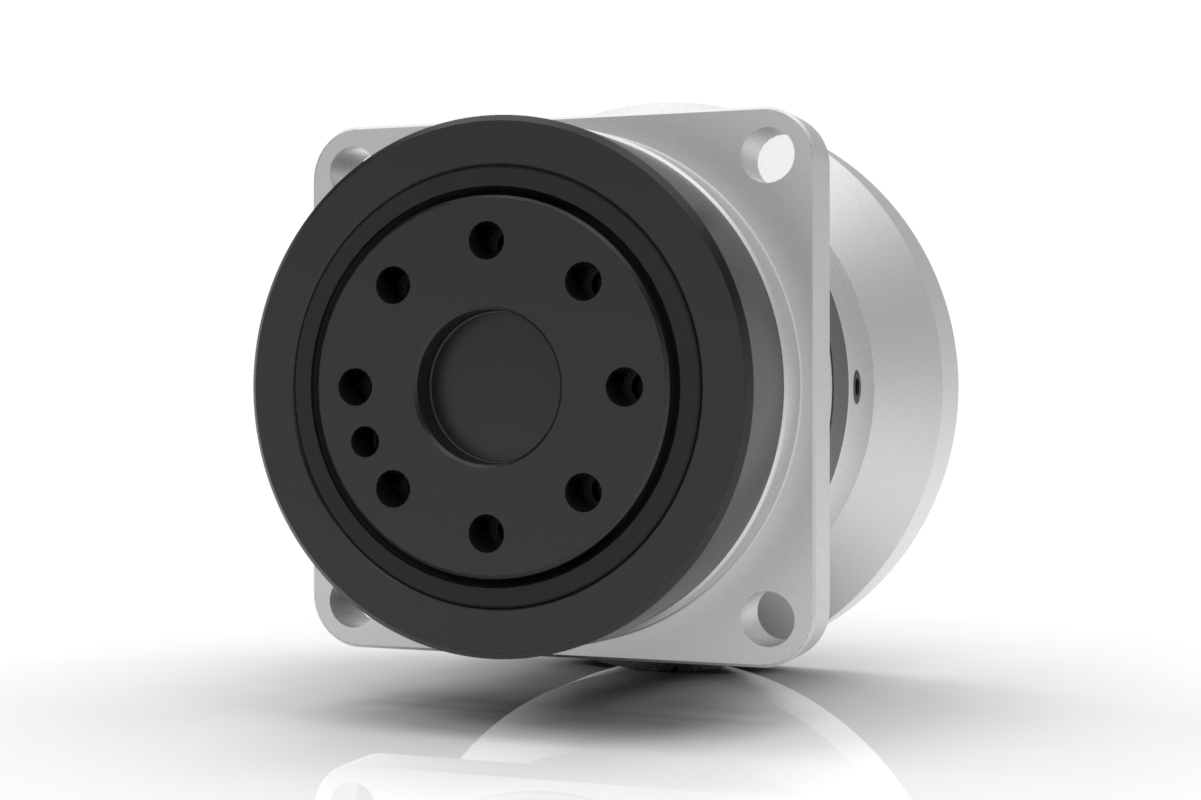

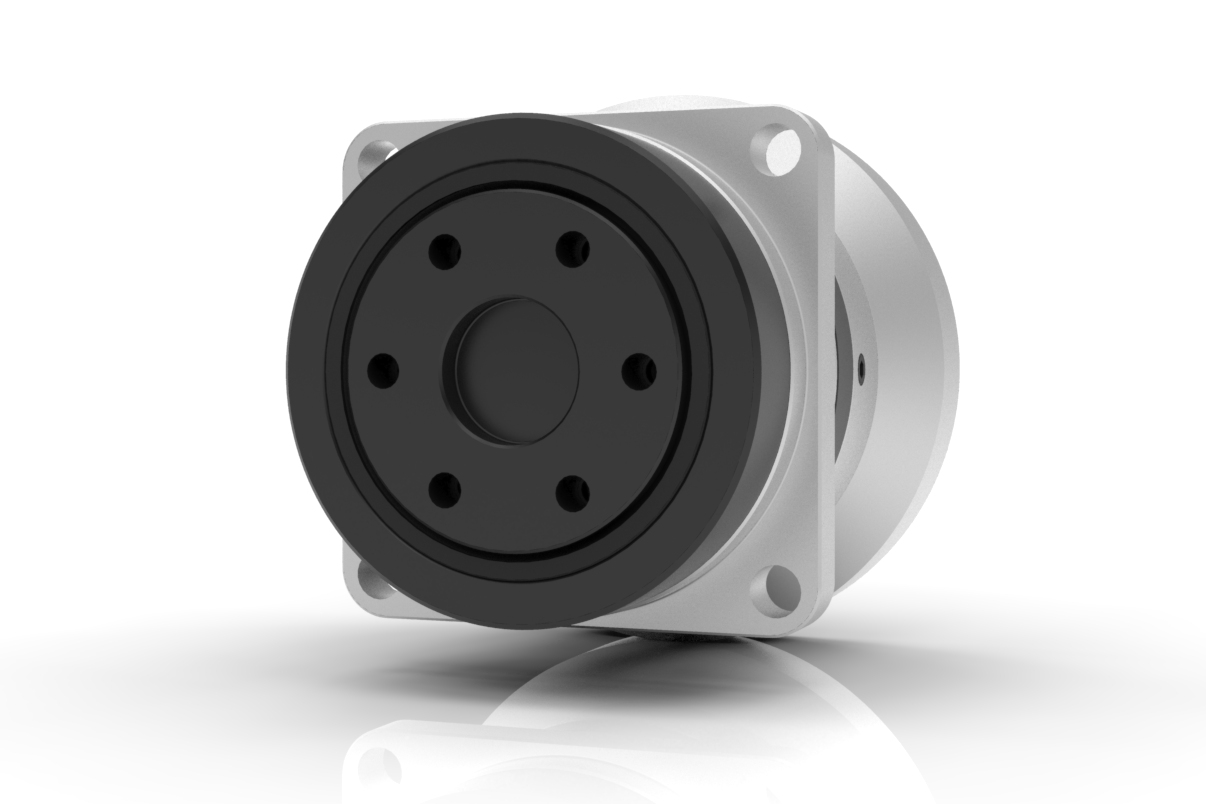

CSF-GH and CSG-GH Quick Connect® gearheads with zero-backlash Harmonic Drive® gearing utilize our proprietary S tooth profile and provide high precision positioning (repeatability ±4 to ±10 arc-sec).

Harmonic Planetary® Harmonic Drive® Harmonic Planetary® Gear Units
