Micro Encoder

Super compact incremental encoders.

Contact our experts to find the right solution and get started today!

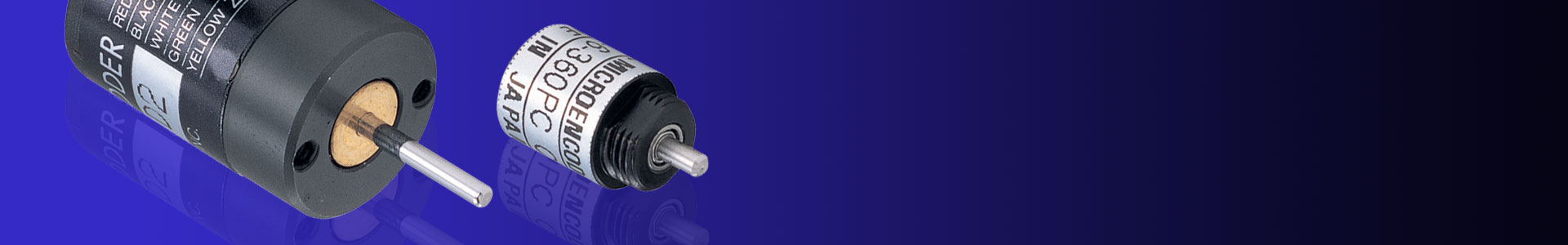

Available in two sizes: the micro model and the ultra-micro model, these high resolution incremental encoders are remarkably compact.

The ultra-micro model

MES-6

Dimensions ø7.5 x 10.5mm , Incremental encoder 360 line count
Output phases: A, B, Z
Square wave open collector output

The micro model

MES-9 (Single shaft)

MEH-9 (Hollow shaft)

Dimensions ø13 x 20mm , Incremental encoder 1000 line count
Output phases: A, B, Z
Square wave open collector output
Hollow shaft is also available

Model Ordering Code

ME-	X-	X-	XXX	PX
	1	2	3	4

1.	Shaft shape	: S, H**
2.	Size	: 6, 9
3.	Output pulses	: 100, 200, 300, 360, 500, 1000
4.	Output circuit	C = Open collector output None = Voltage output ***
Hollow shaft feature and line counts of 500 and 1000 are only available in size 9 * Voltage output is only available in size 9.

List of Ratings

Item/model		MES-6- PC	ME 9- P
Power supply		DC5V±10%	DC5V±10%
Current consumption		30mA or less (without load)	40mA or less (without load)
Signal detection code		Incremental	Incremental
Output	Output pulses (Standard) [Pulses/evolution]	100 200 300 360	100 200 300 360 500	1000
	Output phase	A, B, Z	A, B, Z (Z = "H")
	Output signal	Square wave open collector output	Square wave open collector output , or, voltage output
	Output capacity	Sink current: 4mA (output withstand voltage 7V) Residual voltage: 0.4V or less	Sink current: 20mA Residual voltage: 0.5V (at 10mA)
	Max. response frequency (response pulses)	100kHz	100kHz
	Output phase difference	A and B phase difference 90°±45° (T/4 ±T/8) Z phase T ±T/2 (see output waveform diagram)	A and B phase difference 90°±45° (T/4 ±T/8) Z phase T ±T/2 (see output waveform diagram)
	Waveform rise and fall time	2μs or less (output cable 300mm or less)	2μs or less (output cable 140mm or less)
Starting torque		0.3x10-3N•m (3gf-cm) or less	1.0x10-3N•m (10gf-cm) or less
Permissible shaft load (Electrical)	Radial	1.9N (0.43 lb)	1.9N (0.43 lb)	0.98N (0.22 lb)
	Thrust	0.98N (0.22 lb)	1.9N (0.43 lb)	0.98N (0.22 lb)
Permissible Max. revolutions (Mechanical)		6000r/min	6000r/min
Operating temperature/humidity		0°C∼60°C RH35%∼90% No condensation	0°C∼60°C RH35%∼90% No condensation
Storage temperature		-20°C∼80°C	-20°C∼80°C
Resistance to vibration		Frequency 55Hz, double amplitude 1.5mm Withstands 2 hours each in X, Y and Z directions	Frequency 55Hz, double amplitude 1.5mm Withstands 2 hours each in X, Y and Z directions
Resistance to shock		500m/s2 (about 50G) Withstands 3 cycles each in X, Y and Z directions	500m/s2 (about 50G) Withstands 3 cycles each in X, Y and Z directions
Cable		Vinyl sheathed (AWG32) Cable length 300mm	Vinyl sheathed (AWG30) Cable length 140mm
Mass		5g	10g

Micro Encoder

The ultra-micro model

The micro model

Model Ordering Code

List of Ratings

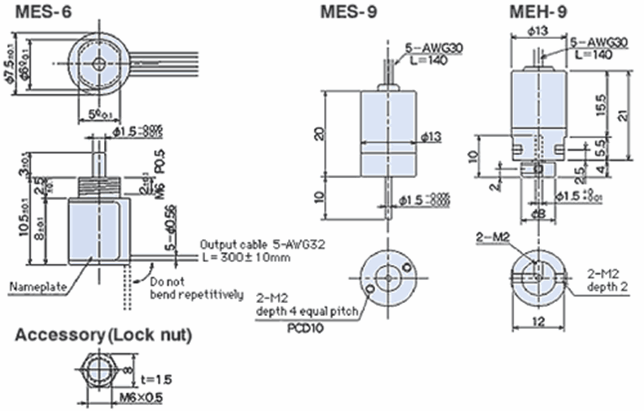

Product Drawing

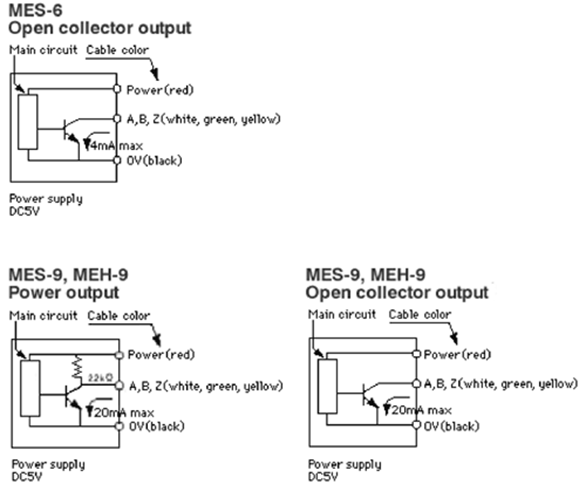

Output Circuit

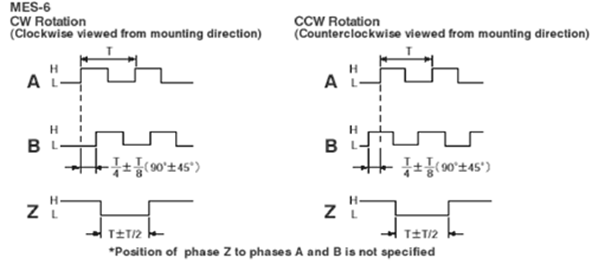

Output Waveform
