Laser Scanning Actuator
Harmonic Drive manufactures galvanometer scanner actuators capable of scanning at high speeds with intense precision. Our unique mobile magnet motors and a newly developed optical sensor are used for LSA Series laser scanning actuators.
Key Components of a Galvanometer Laser Scanner
A galvanometer laser scanner is used to move a laser beam quickly and accurately in all directions. Some specific components of this scanner include:
- Galvano mirrors: The small Galvano mirror scanner attachment rotates rapidly in response to electronic signals, directing the laser in various directions.
- Laser scan actuators: The laser scan actuator controls the movement of the laser beam. The laser scans surfaces or targets for applications such as laser printing and barcode scanning.
- Control electronics: Control electronics in the scanner provide precision and allow the mirror to rotate.
Galvanometer Scanner Laser Applications
At Harmonic Drive, our galvanometer scanner parts are designed to meet high performance and quality standards. We recognize the importance of this machine in medical imaging and industrial settings for material processing.
The galvanometer scanner can specifically be used on:
- Measuring instruments.
- Inspection instruments.
- Laser marking equipment.
- Communications equipment.
- Minute processing apparatus.
- Printed baseboard processing equipment.
- Laser displays.
- Measuring instruments.
DXF CAD Files
PDF Drawings|
Contact our experts to find the right solution and get started today!
|
List of Ratings
Below is an outline of the general specifications of our galvanometer scanners.
|
Item/model |
LSA-10A-30 |
|
|
Maximum angular runout |
(deg) |
±15 |
|
Torque constant |
(N·m/A) |
0.0077 (0.0668 In.lb/A) |
|
Sensor Linearity (on full scale) |
(%) |
±0.06 |
|
Scale drift |
(%/°C) |
0.005 |
|
Position reproducibility |
(μrad) |
5 |
|
Mass |
(g) |
180 |
|
Combined driver |
PSM-130 |
|
|
CAD Downloads |
||

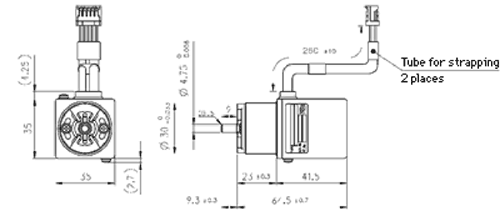

Product Drawing
LSA-10A-30
Please confirm dimensions and specifications with the drawing issued by Harmonic Drive LLC.
Benefits of a Laser Scan Actuator
Implementing a laser scan actuator offers your scanner the following advantages:
- High-speed scanning capabilities: Galvanometer lasers offer high-speed scanning capabilities, making them ideal for tasks like barcode scanning. The enhanced speed can increase efficiency and production rates for laser cutting or printing.
- Precision and accuracy: These scanners are highly precise and accurate with their in-beam steering. This fine control allows for intricate and detailed work, such as laser etching and microscopy.
- High laser power levels: A galvanometer laser can handle high laser power levels, supporting versatile applications for various industries.
Why Choose Harmonic Drive?
For more than 60 years, Harmonic Drive has manufactured strain wave gear and actuator products for customers worldwide. We have manufacturing facilities in the United States, Germany and Japan to ensure a far reach.
Harmonic Drive can provide access to:
- Experienced application engineers: Our full-service engineering department is dedicated to overcoming challenges and providing realistic and timely solutions for our customers.
- Custom-engineered solutions: Our parts are customizable to meet your exact needs and cater to an evolving market.
- Trustworthy customer service: At Harmonic Drive, we are passionate about what we do and are here to help our customers find cost-effective solutions.
Contact Us to Learn More Today
Harmonic Drive can help any industry, from medical devices to robotics. Contact us with requests, questions or comments today. You can also find a sales contact.
