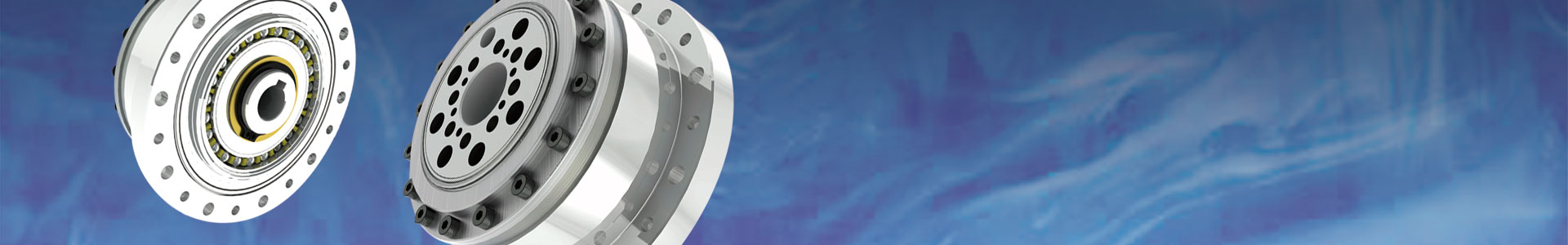

CSG-2UH-LW

LW indicates lightweight. This gearhead is ideal for applications where weight is a critical factor, but high torque and zero backlash are ‘required’. CSG-2UH-LW is a high torque housed component gear set combined with a precision cross roller output bearing & flange. It is a very compact, robust and easy to use gearhead solution. It is available in 10 sizes with ratios 30:1 to 160:1. If your application does not require high torque, CSF-2UH-LW standard torque gear is also available, if weight is not a critical factor, see our CSG-2UH standard unit.

Key Features:

Zero Backlash
30% average lower weight than Standard Series
Peak Torque: 23Nm to 3419Nm
Reduction ratios 30:1 to 160:1
High Accuracy
High load capacity output bearing

Contact our experts to find the right solution and get started today!

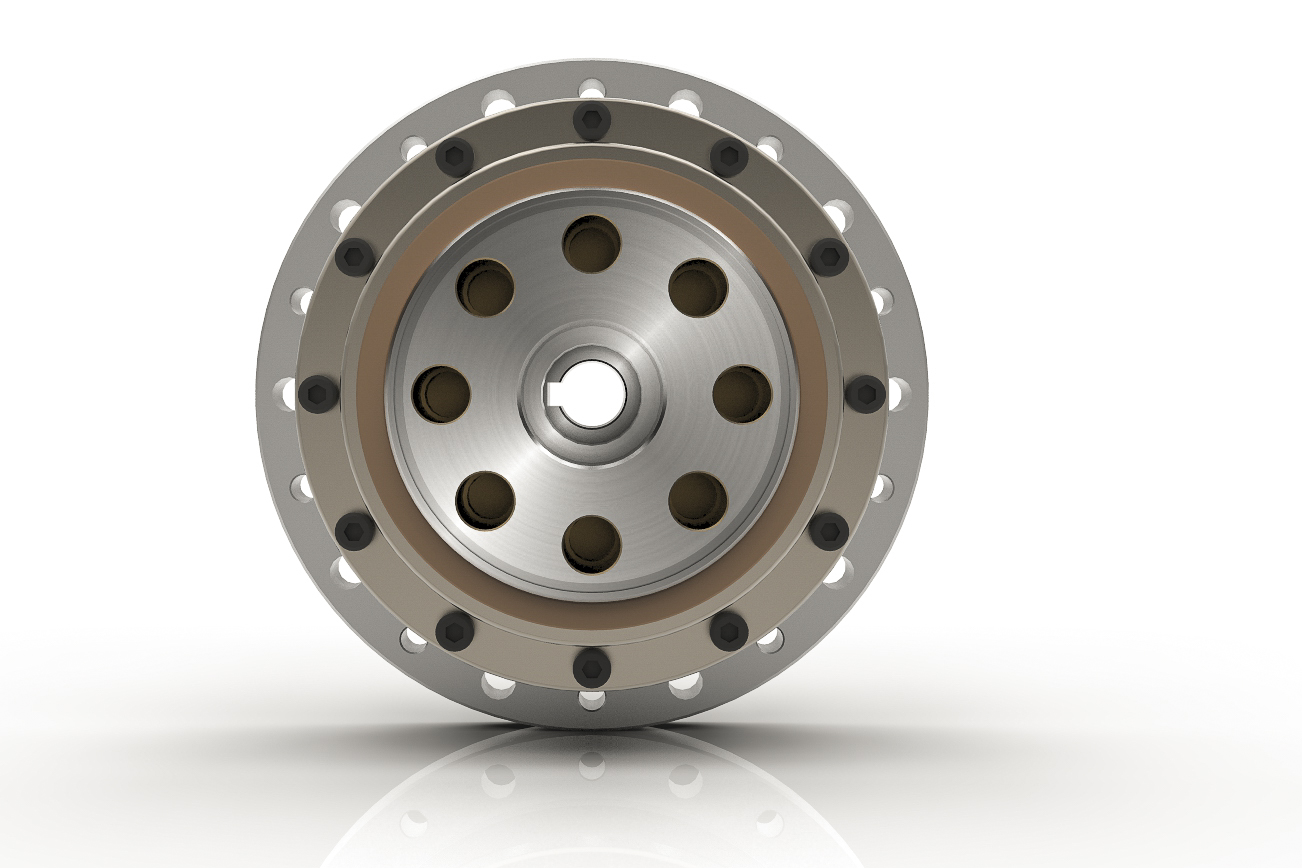

CSG-25-2UH-LW

Compare Products Your current units are metric. Change to english.

Ordering Code	Size	Ratio	Rated Torque L10	Limit for Repeated Peak Torque	Limit for Momentary Peak Torque	Backdriving Torque	Standard Accuracy	Mass	K1 Torsional Stiffness	K2 Torsional Stiffness	K3 Torsional Stiffness	Output Moment Stiffness (Km)
Compare Products			Nm	Nm	Nm	Nm	arc min	kg	10^4 Nm / rad	10^4 Nm / rad	10^4 Nm / rad	10^4 Nm / rad

Loading...

Ordering Code	Size	Ratio	Rated Torque L10	Limit for Repeated Peak Torque	Limit for Momentary Peak Torque	Backdriving Torque	Standard Accuracy	Mass	K1 Torsional Stiffness	K2 Torsional Stiffness	K3 Torsional Stiffness	Output Moment Stiffness (Km)
Compare Products			Nm	Nm	Nm	Nm	arc min	kg	10^4 Nm / rad	10^4 Nm / rad	10^4 Nm / rad	10^4 Nm / rad
Sort	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide	Sort Hide
Selections	to	to	to	to	to	to	to	to	to	to	to	to

Select All Select None
CSG-14-50-2UH-LW	14	50	7	23	46	1.8	1.5	0.32	0.19	0.24	0.34	3.6
CSG-14-80-2UH-LW	14	80	10	30	61	1.8	1.5	0.32	0.47	0.61	0.71	3.6
CSG-14-100-2UH-LW	14	100	10	36	70	2	1.5	0.32	0.47	0.61	0.71	3.6
CSG-17-50-2UH-LW	17	50	21	44	91	3.3	1.5	0.46	0.81	1.1	1.3	6.4
CSG-17-80-2UH-LW	17	80	29	56	113	3.3	1.5	0.46	1	1.4	1.6	6.4
CSG-17-100-2UH-LW	17	100	31	70	143	3.6	1.5	0.46	1	1.4	1.6	6.4
CSG-17-120-2UH-LW	17	120	31	70	112	3.9	1.5	0.46	1	1.4	1.6	6.4
CSG-20-50-2UH-LW	20	50	33	73	127	5.2	1	0.64	1.3	1.8	2.3	10.5
CSG-20-80-2UH-LW	20	80	44	96	165	5.3	1	0.64	1.6	2.5	2.9	10.5
CSG-20-100-2UH-LW	20	100	52	107	191	5.6	1	0.64	1.6	2.5	2.9	10.5
CSG-20-120-2UH-LW	20	120	52	113	191	6.1	1	0.64	1.6	2.5	2.9	10.5
CSG-20-160-2UH-LW	20	160	52	120	191	7	1	0.64	1.6	2.5	2.9	10.5
CSG-25-50-2UH-LW	25	50	51	127	242	9.9	1	1.1	2.5	3.4	4.4	19.8
CSG-25-80-2UH-LW	25	80	82	178	332	10	1	1.1	3.1	5	5.7	19.8
CSG-25-100-2UH-LW	25	100	87	204	369	11	1	1.1	3.1	5	5.7	19.8
CSG-25-120-2UH-LW	25	120	87	217	395	12	1	1.1	3.1	5	5.7	19.8
CSG-25-160-2UH-LW	25	160	87	229	408	14	1	1.1	3.1	5	5.7	19.8
CSG-32-50-2UH-LW	32	50	99	281	497	20	1	2.2	5.4	7.8	9.8	44.2
CSG-32-80-2UH-LW	32	80	153	395	738	21	1	2.2	6.7	11	12	44.2
CSG-32-100-2UH-LW	32	100	178	433	841	22	1	2.2	6.7	11	12	44.2
CSG-32-120-2UH-LW	32	120	178	459	892	24	1	2.2	6.7	11	12	44.2
CSG-32-160-2UH-LW	32	160	178	484	892	29	1	2.2	6.7	11	12	44.2
CSG-40-50-2UH-LW	40	50	178	523	892	36	1	3.5	13	20	23	74.6
CSG-40-80-2UH-LW	40	80	268	675	1,270	36	1	3.5	13	20	23	74.6
CSG-40-100-2UH-LW	40	100	345	738	1,400	40	1	3.5	13	20	23	74.6
CSG-40-120-2UH-LW	40	120	382	802	1,530	43	1	3.5	13	20	23	74.6
CSG-40-160-2UH-LW	40	160	382	841	1,530	51	1	3.5	13	20	23	74.6
CSG-45-50-2UH-LW	45	50	229	650	1,235	52	1	5.1	18	29	33	116
CSG-45-80-2UH-LW	45	80	407	918	1,651	53	1	5.1	18	29	33	116
CSG-45-100-2UH-LW	45	100	459	982	2,041	56	1	5.1	18	29	33	116
CSG-45-120-2UH-LW	45	120	523	1,070	2,288	61	1	5.1	18	29	33	116
CSG-45-160-2UH-LW	45	160	523	1,147	2,483	70	1	5.1	18	29	33	116
CSG-50-80-2UH-LW	50	80	484	1,223	2,418	69	1	7	25	40	44	140
CSG-50-100-2UH-LW	50	100	611	1,274	2,678	75	1	7	25	40	44	140
CSG-50-120-2UH-LW	50	120	688	1,404	2,678	80	1	7	25	40	44	140
CSG-50-160-2UH-LW	50	160	688	1,534	3,185	94	1	7	25	40	44	140
CSG-58-80-2UH-LW	58	80	714	1,924	3,185	106	1	11.3	40	61	71	201
CSG-58-100-2UH-LW	58	100	905	2,067	4,134	121	1	11.3	40	61	71	201
CSG-58-120-2UH-LW	58	120	969	2,236	4,329	121	1	11.3	40	61	71	201
CSG-58-160-2UH-LW	58	160	969	2,392	4,459	143	1	11.3	40	61	71	201
CSG-65-80-2UH-LW	65	80	969	2,743	4,836	154	1	16.2	54	88	98	331
CSG-65-100-2UH-LW	65	100	1,236	2,990	6,175	165	1	16.2	54	88	98	331
CSG-65-120-2UH-LW	65	120	1,236	3,263	6,175	176	1	16.2	54	88	98	331
CSG-65-160-2UH-LW	65	160	1,236	3,419	6,175	198	1	16.2	54	88	98	331
